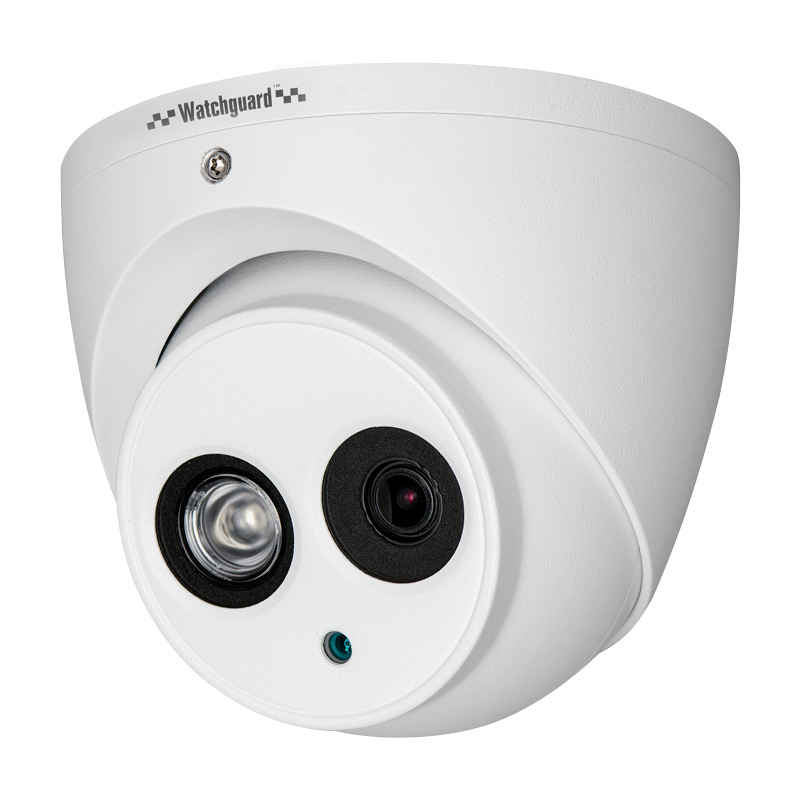

Compact Series 1080p Fixed HDCVI Mini Turret
Model:VSCVI2MPDIRV5
Overview
Stream in real-time at 1080p Full HD with the VSCVI2MPDIRV5 Compact Series Fixed Mini Dome. Built with weather resistant housing, built in microphone, excellent low light performance, and long range infrared.
Camera Features:
• Streams HD 1080p/2.0MP (1920 x 1080)
• Fixed 3.6mm lens; 87° viewing angle
• Up to 800m HD video transmission over coax
• Superb low light performance (0.005lux @F1.6)
• Built-in microphone to record audio surveillance
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
Camera Features:
• Streams HD 1080p/2.0MP (1920 x 1080)
• Fixed 3.6mm lens; 87° viewing angle
• Up to 800m HD video transmission over coax
• Superb low light performance (0.005lux @F1.6)
• Built-in microphone to record audio surveillance
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | 87° |
| Audio Input | Built-in Microphone |
| Camera Type | Turret |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 55m |
| Dimensions | Ø106 x 94mm |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter | 1/4 ~ 1/100,000s |
| Focus | Fixed |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | AGC |
| Housing | Metal |
| Identify (250px/m) | 6m |
| Image Sensor | 1/2.8” 2.0 Megapixel CMOS |
| Infrared Range | 50m |
| Ingress Protection | IP67 |
| Lens | 3.6mm Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / DWDR |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour) / 30IRE, 0 Lux IR Active |
| Mode Switching | OSD (via HDCVI recorder) / VSSELECT101 (UTC connector) |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D |
| Observe (63px/m) | 22m |
| Operating Environment | -40° to 60°C / RH90% (max) |
| OSD Menu | Multi language |
| Power Consumption | < 4.7W |
| Power Input | 12VDC |
| Recognise (125px/m) | 11m |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Series | Compact Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Over 800m via 75-3 coaxial cable |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | No |
| Video Output | 1 x BNC SD / HD / TVI / AHD video output (switchable with VSSELECT101) |
| Weight | 0.44kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
