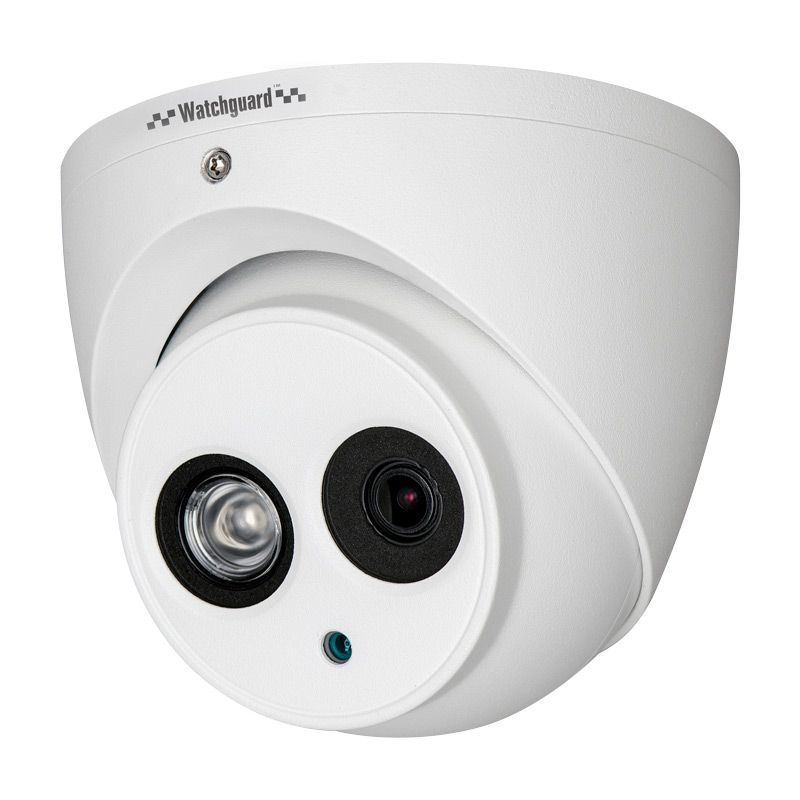

Compact Series 720p Fixed HDCVI Mini Dome
Model:VSCVI1MPDIRV4
Overview
Double your image resolution with the Watchguard range of compact HDCVI cameras. Stream in real-time at 720p HD with this weather resistant, full metal housing surveillance camera.
Camera features:
• Streams HD 720p/1.0MP (1280 x 720)
• Fixed 3.6mm lens; 72° viewing angle
• Up to 800m HD video transmission over coax
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• Full metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
Camera features:
• Streams HD 720p/1.0MP (1280 x 720)
• Fixed 3.6mm lens; 72° viewing angle
• Up to 800m HD video transmission over coax
• Infrared illumination up to 50m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• Full metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | 72° |
| Audio Input | N/A |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Manual |
| Detect (25px/m) | 38m |

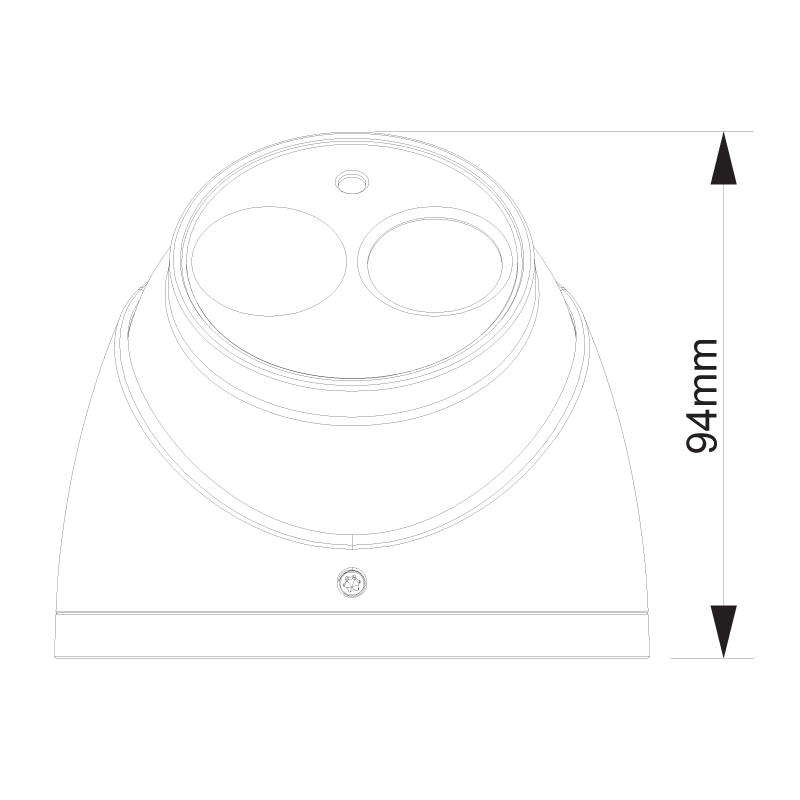

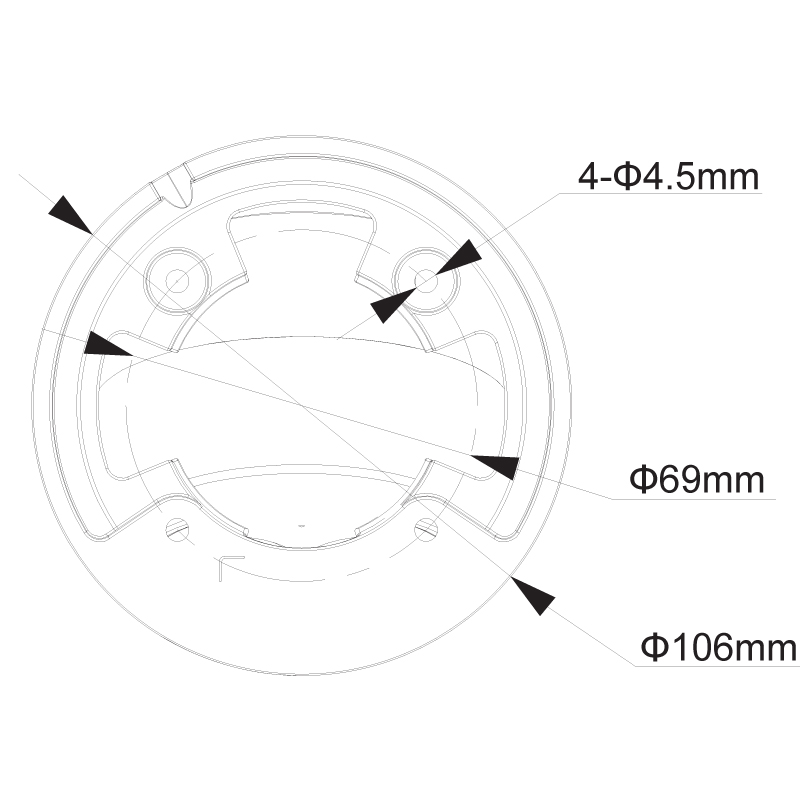

| Dimensions | Ø106 x 94mm |
| Effective Pixels | 1280 (H) x 720 (V) |
| Electronic Shutter | 1/3 ~ 1/100,000s |
| Focus | Fixed |
| Frame Rate | 25fps (720p and lower) |
| Gain Control | AGC |
| Housing | Metal |
| Identify (250px/m) | 4m |
| Image Sensor | 1/2.9” 1.0 Megapixel CMOS |
| Infrared Range | 50m |
| Ingress Protection | IP67 |
| Lens | 3.6mm Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / DWDR |
| Max. Resolution | 1.0 Megapixel |
| Minimum Illumination | 0.05 Lux at F1.6 (Colour) / 0 Lux IR Active |
| Mode Switching | OSD (via HDCVI recorder) / VSSELECT101 (UTC connector) |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D |
| Observe (63px/m) | 15m |
| Operating Environment | -30° to 60°C / RH95% (max) |
| OSD Menu | Support |
| Power Consumption | < 3.8W |
| Power Input | 12VDC |
| Recognise (125px/m) | 8m |
| Resolution | 720p (1280 x 720) to CIF (352 x 288) |
| Series | Compact Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Over 800m via 75-3 coaxial cable |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | N/A |
| Video Output | 1 x BNC HD video output |
| Weight | 0.45kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
