Compact Series 16CH PoE NVR with 2 x HDD Bays
Model:NVR16COM3
Overview
The NVR16COM3 is a compact network video recorder with Ultra HD broadcast-quality image performance and built-in 16 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265+ compression technology and an industrial grade processor.
This NVR supports cameras with AI functions including AI Human/Vehicle Detection and AI Face Detection cameras.
Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 16 x Power over Ethernet (PoE) ports
• Up to 160Mbps total incoming bandwidth
• Decodes up to 16CH@1.0MP(720p)/25fps
• 2 x SATA port up to 10TB, max. 20TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code
This NVR supports cameras with AI functions including AI Human/Vehicle Detection and AI Face Detection cameras.
Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 16 x Power over Ethernet (PoE) ports
• Up to 160Mbps total incoming bandwidth
• Decodes up to 16CH@1.0MP(720p)/25fps
• 2 x SATA port up to 10TB, max. 20TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code
| Specifications | |
|---|---|
| Alarm Actions | Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email |
| Alarm Interface | 4 inputs, 2 outputs |
| Alarm Types | General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.) |
| ANPR (By Camera) | - |
| ANPR Functions | - |
| App Integration | iOS (iPhone, iPad) / Android devices |
| Audio | 1 channel input (RCA), 1 channel output (RCA) |
| Backup Method | USB Device / Network |
| Decoding Capacity (AI Disabled) | 2CH@8.0MP/25fps, 4CH@4.0MP/25fps, 8CH@2.0MP/25fps, 16CH@1.0MP/25fps |
| Decoding Capacity (AI Enabled) | - |

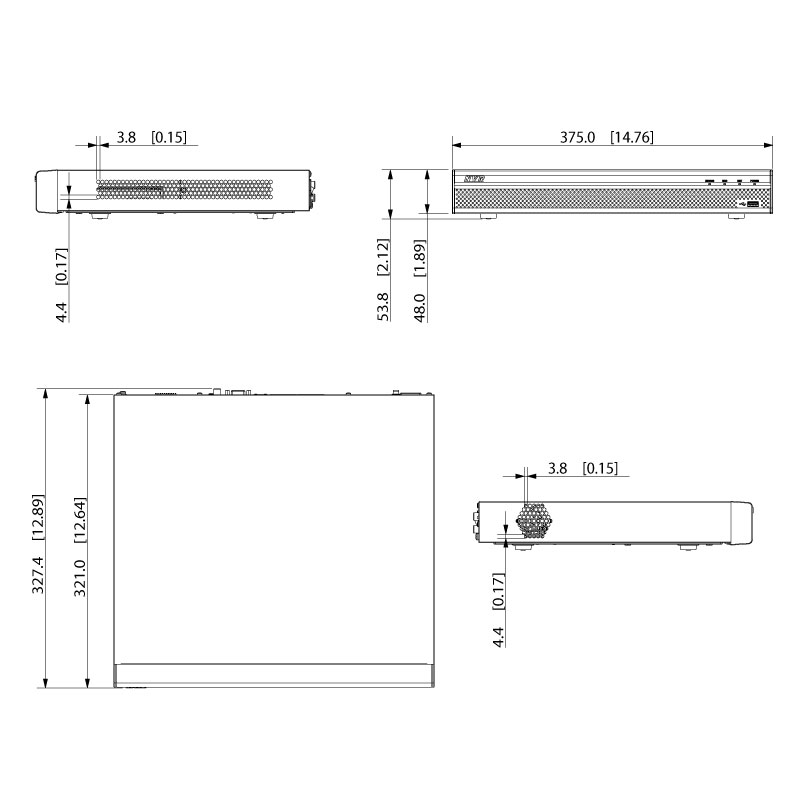

| Dimensions | 375 x 327 x 54mm |
| Display Mode | HDMI1 + VGA1 (Mirror) |
| Display Output | 1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080) |
| Display Split | 1/4/8/16 |
| Face Detection (By Camera) | 4 Channels |
| Face Detection (By NVR) | - |
| Face Detection Functions | Gender, Age Group, Glasses, Expressions, Face Mask, Beard |
| Face Recognition (By Camera) | - |
| Face Recognition (By NVR) | - |
| Face Recognition Capacity | - |
| HDD | 2 x SATA bays, up to 10TB per bay |
| HDD Capacity | 2 |
| Human/Vehicle Detection (By Camera) | IVS: 8 channels, SMD: 12 channels |
| Human/Vehicle Detection (By NVR) | - |
| Human/Vehicle Detection Functions | AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD) |
| Interoperability | ONVIF (Profile S), CGI, SDK, RTSP |
| Network Bandwidth (AI Disabled) | 160/160/64Mbps (incoming/recording/outgoing) |
| Network Bandwidth (AI Enabled) | - |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P |
| Network Input | 1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at) |
| NVR Operated AI | - |
| Operating Environment | -10 ~+55°C / 10~90%RH |
| Playback Channels | 16 channels |
| Playback Modes | General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS |
| PoE | Yes |
| Power Consumption | NVR: <10W (without HDD) / PoE: Max 25.5W per port, 117W total |
| Power Supply | 100 ~ 240VAC (47 ~ 63Hz) (3.5A) |
| Processor & Operation | Industrial grade processor & embedded Linux |
| Rackmount Units | - |
| Rackmountable | No |
| Recording Resolution | Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Supported Camera AI | Face Detection, AI Human/Vehicle Detection, People Counting, Heatmap, Audio Detection |
| USB & Other Inputs | 1 x Front USB 2.0, 1 x Rear USB 2.0 |
| Video & Audio Compression | Video: H.265+ / H.265 / H.264+ / H.264, Audio: PCM / G711A / G711U / G726 / AAC |
| Video Input | 16 Channels |
| Video Metadata (By Camera) | - |
| Video Metadata (By NVR) | - |
| Video Metadata Functions | - |
| Weight | 2.63kg (without HDD) |
| Warranty (Years) | 4 |
