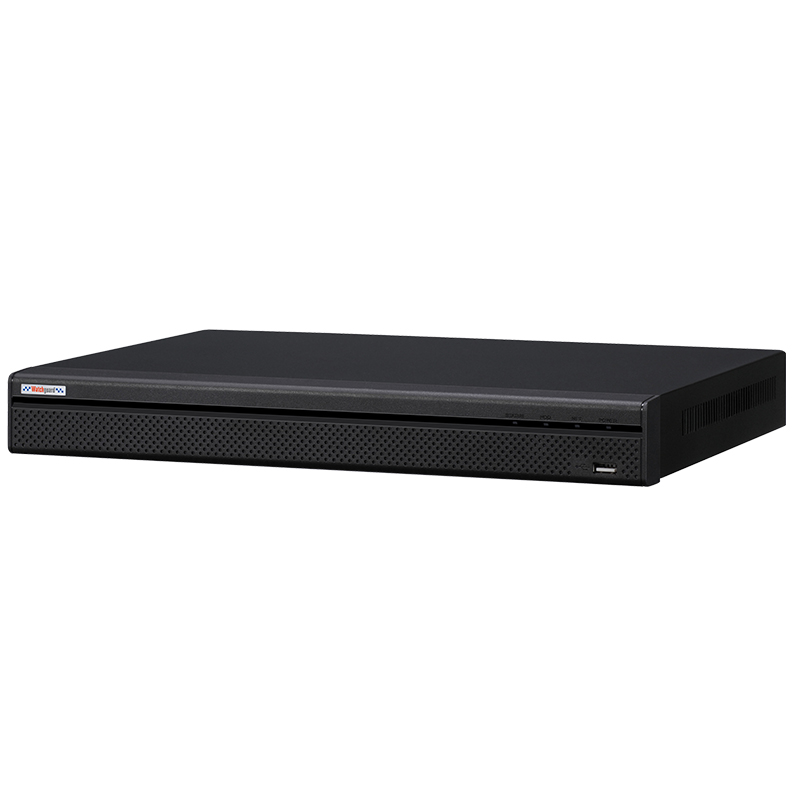

Compact 16 Channel Network Video Recorder with PoE (200Mbps)
Model:NVR16COM2
Overview
The NVR16COM2 is a compact network video recorder with a built-in 16 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265 compression technology and a quad-core processor.
Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 16CH NVR with 16 Power over Ethernet ports
• Up to 200Mbps total incoming bandwidth
• 2 x SATA port up to 10TB each, max. 20TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code
Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 16CH NVR with 16 Power over Ethernet ports
• Up to 200Mbps total incoming bandwidth
• 2 x SATA port up to 10TB each, max. 20TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code
| Specifications | |
|---|---|
| Alarm Input / Output | 4 channel |
| Auxiliary Inputs | 1 x RS232 port |
| Backup Modes | USB Device / Network |
| Bit Rate | 16kbps ~ 20Mbps per channel |
| Dimensions | 375 x 328 x 53mm |
| Display Resolution | Configurable from 3840 x 2160 to 1024 x 768 |
| Display Split | 1/4/8/9/16 |
| Ethernet | 1 x RJ-45 port (10/100/1000Mbps) |
| HDD Modes | Single (no RAID compatibility) |
| Incoming Bandwidth | 200Mbps |
| Internal HDD | 2 x SATA ports up to 10TB, max. 20TB HDD capacity |
| Interoperability | ONVIF 2.4, SDK, CGI conformant |
| Main Processor | Quad-core embedded processor |
| Max. User Access | 128 users |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip |
| Operating Environment | -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa |
| Operating System | Embedded Linux |
| Optical Interface | N/A |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Playback Sync | 1/4/8/16 |
| PoE | Yes |
| Power Consumption | < 13.2W (without HDD) |
| Power over Ethernet | 16 ports (IEEE802.3at/af) |
| Power Supply | 100~240VAC / 50/60 Hz |
| Rackmount Units | Compact 1RU |
| Rackmountable | No |
| Record Interval | 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s |
| Record Modes | Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop |
| Recording Resolution | Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Remote View | iOS (iPhone, iPad) / Android devices |
| Search Modes | Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
| Two-way Talk | 1 channel input, 1 channel output, RCA |
| USB Interface | 2 ports: Rear USB2.0 / Front USB2.0 |
| Video Compression | H.265 / H.264 |
| Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering |
| Video Input | 16 channels |
| Video Output | 1 x HDMI, 1 x VGA |
| Weight | 2.60kg (without HDD) |
| Warranty (Years) | 4 |
